Amiga 600 and 1200 S-Video Mod

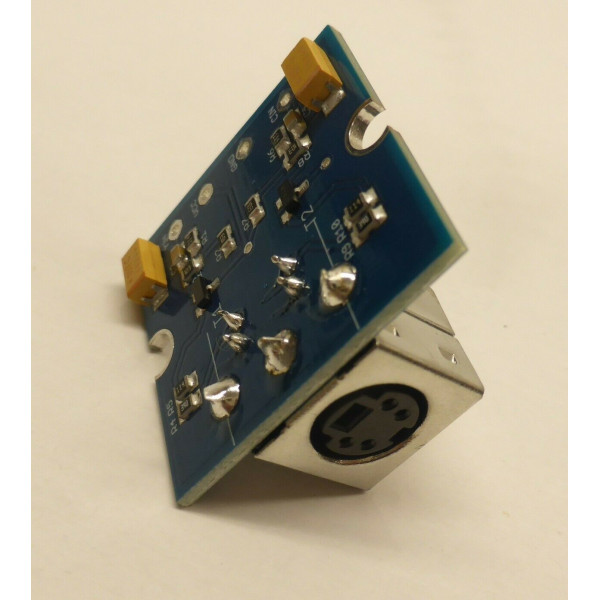

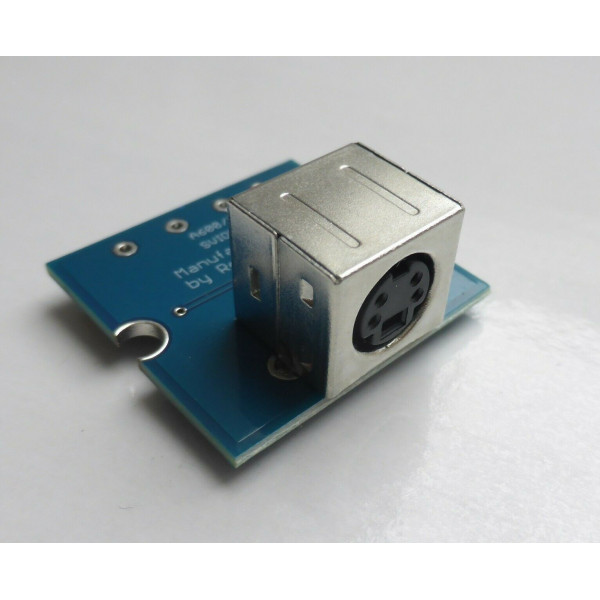

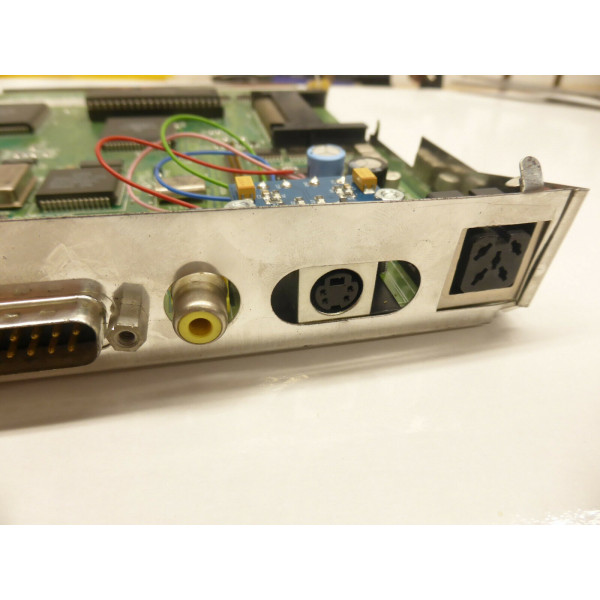

The S-Video add-on for Amiga 600 / 1200. This is mod replaces original on-board modulator with S-Video connector vastly improving picture quality.

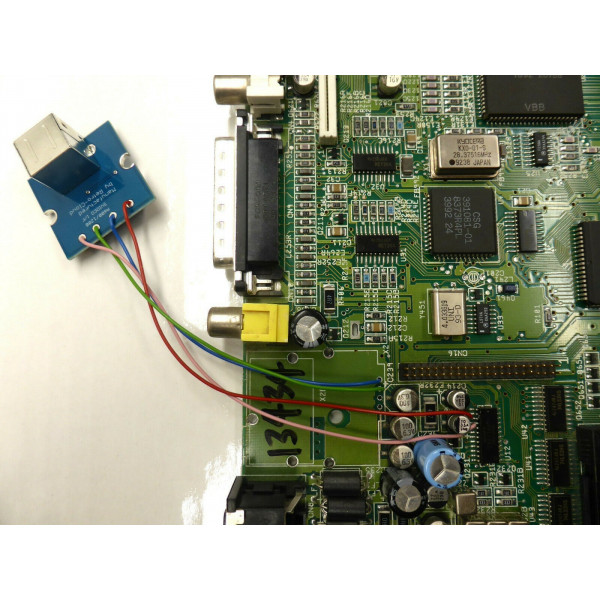

This is a fully assembled internal version. Basic soldering skills are required to connect this device. Board requires four signals described on PCB as:

GND - Ground

VCC - +5 Volts

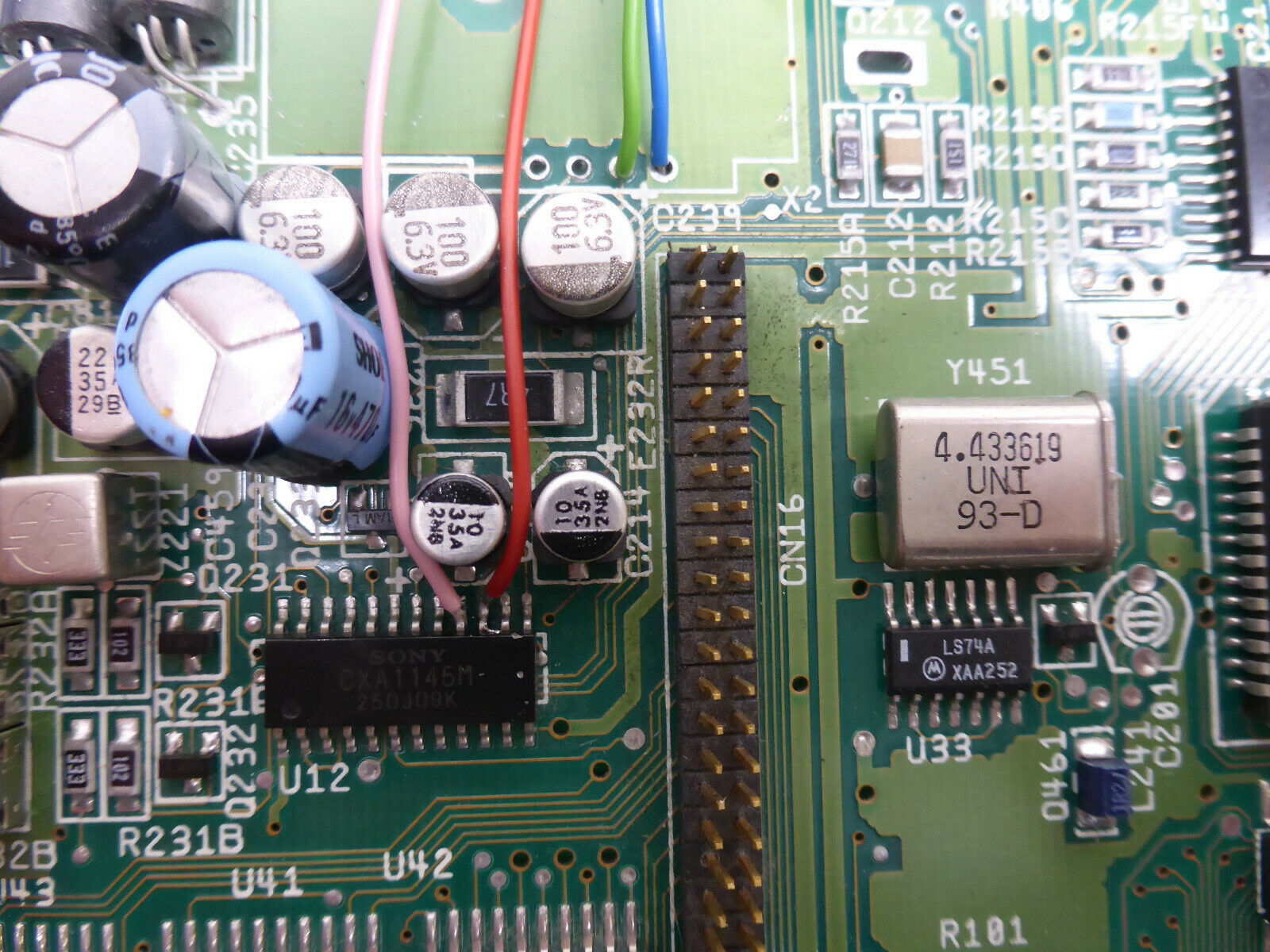

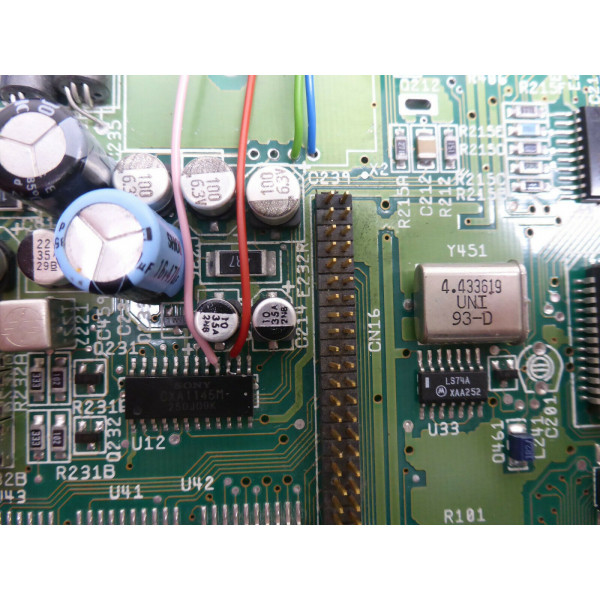

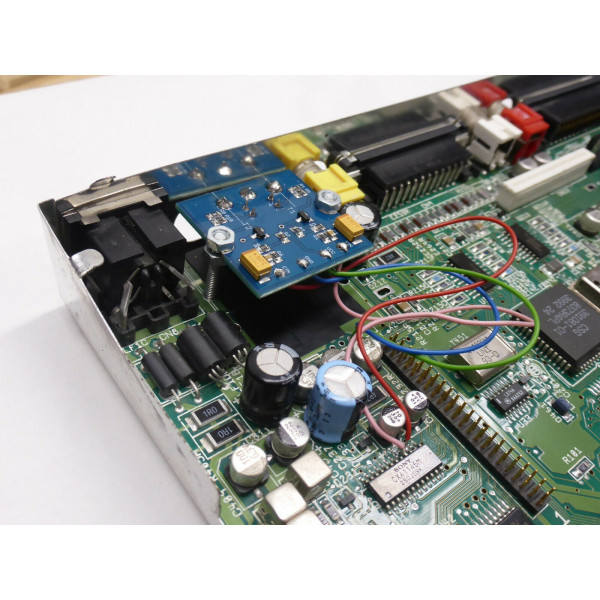

YIN - Luminance - located on pin 16 of Sony CXA1145

CIN - Chrominance - located on pin 15 of Sony CXA1145

Please refer to installation manual in the Downloads tab above.

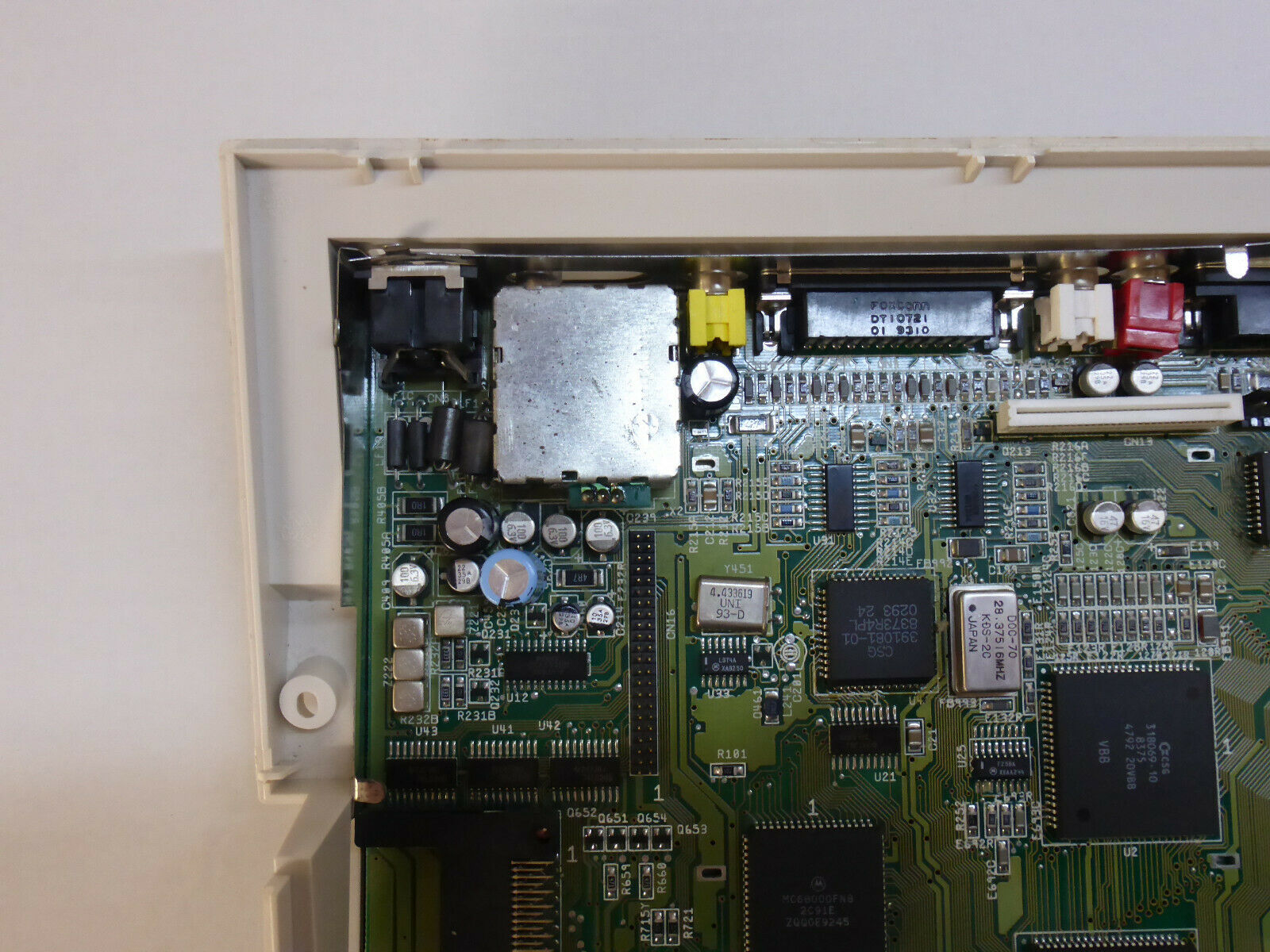

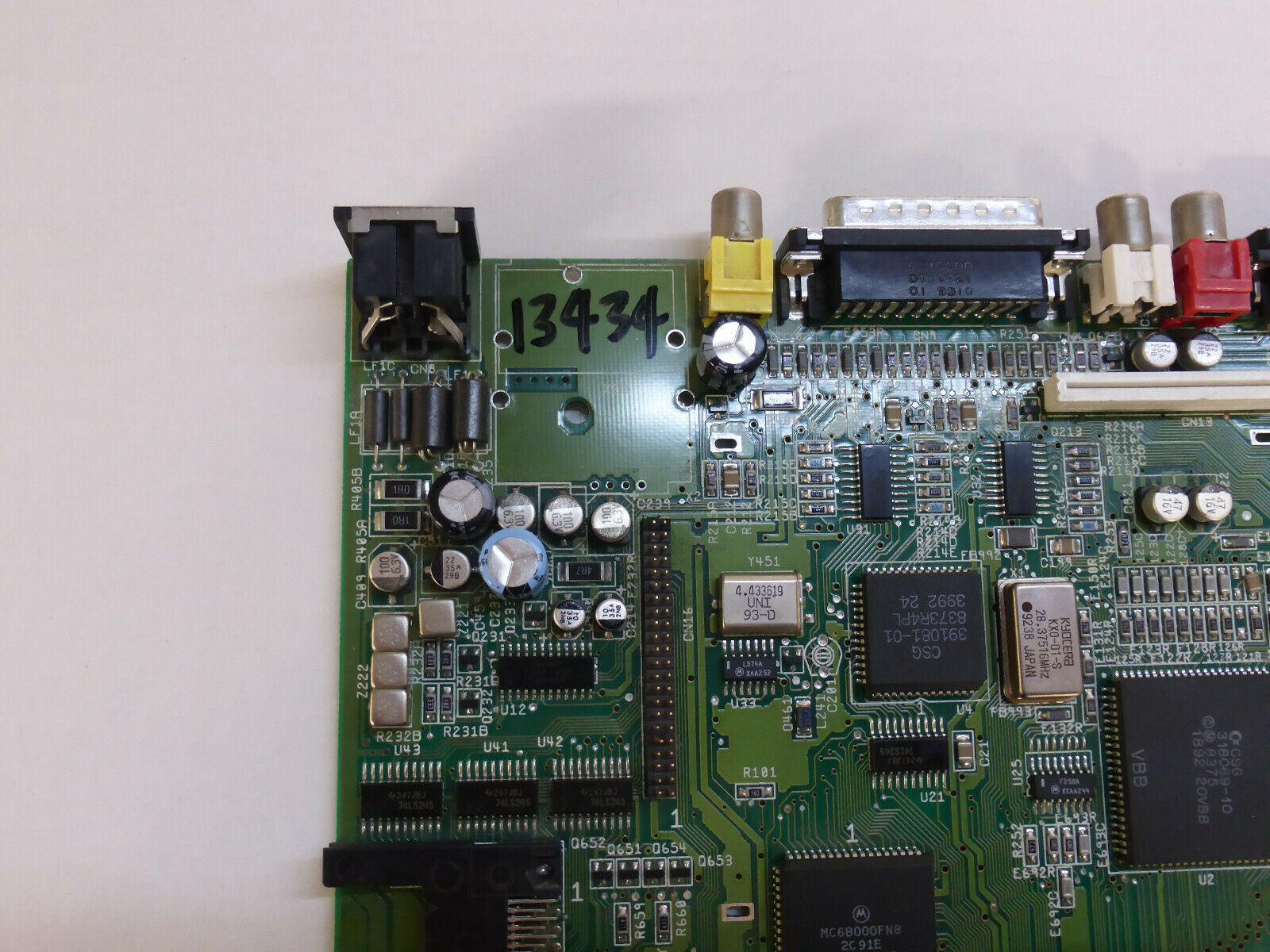

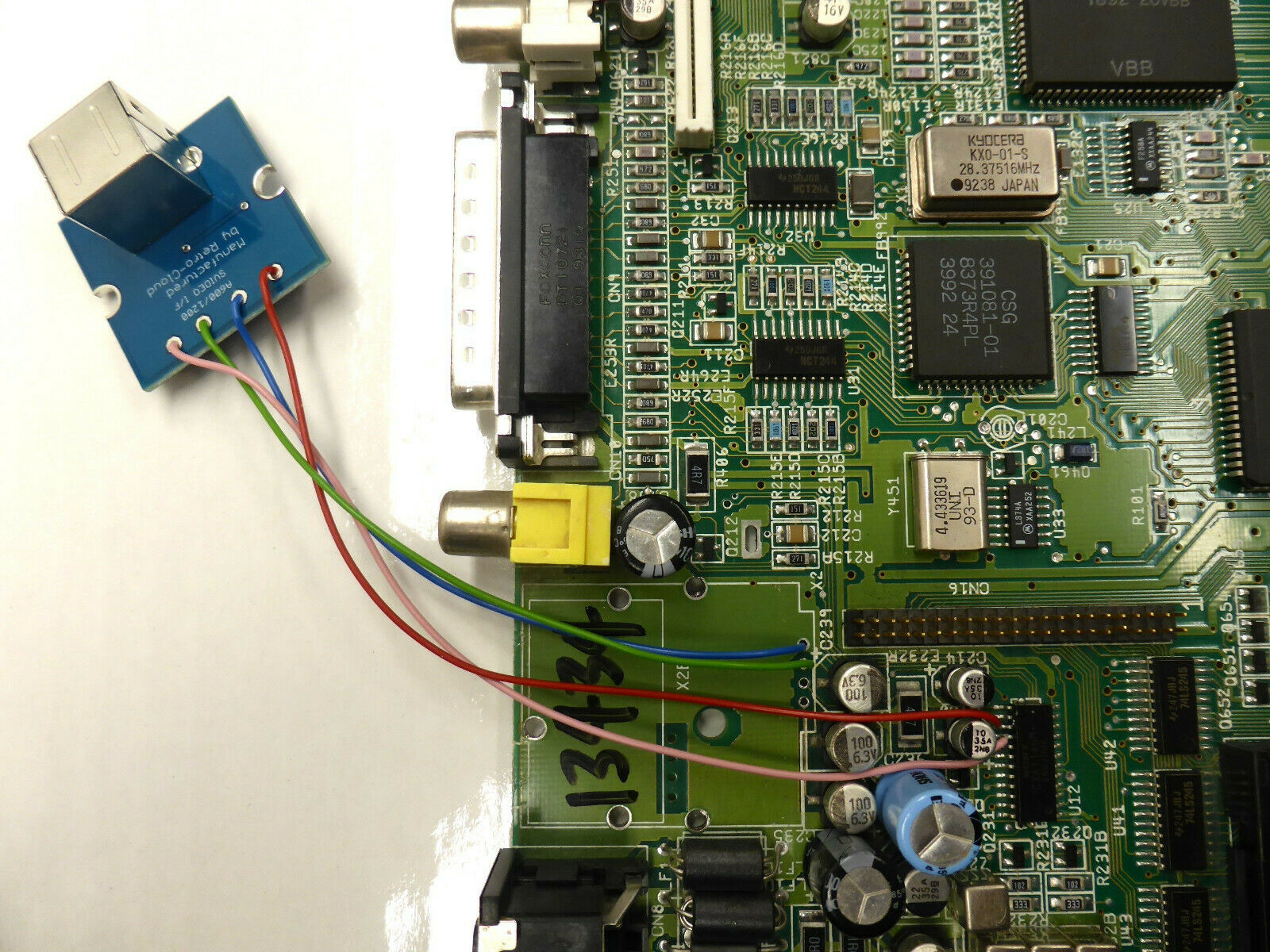

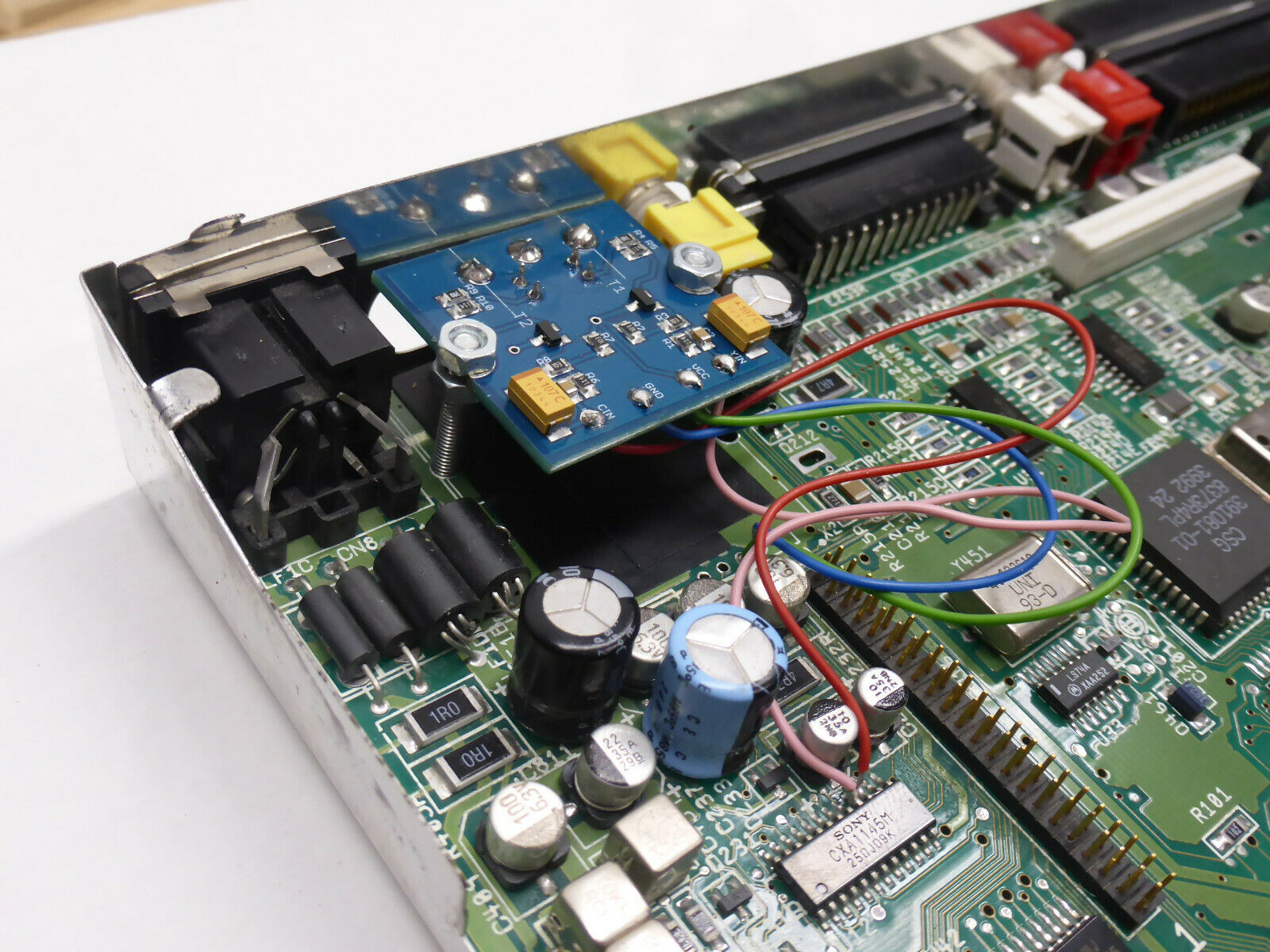

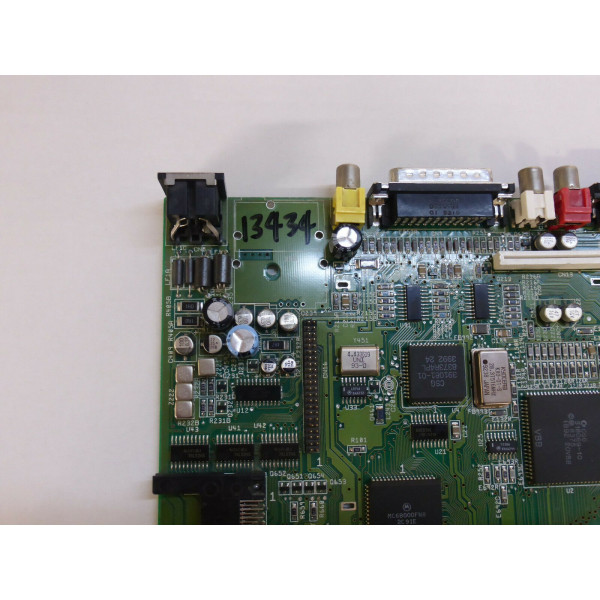

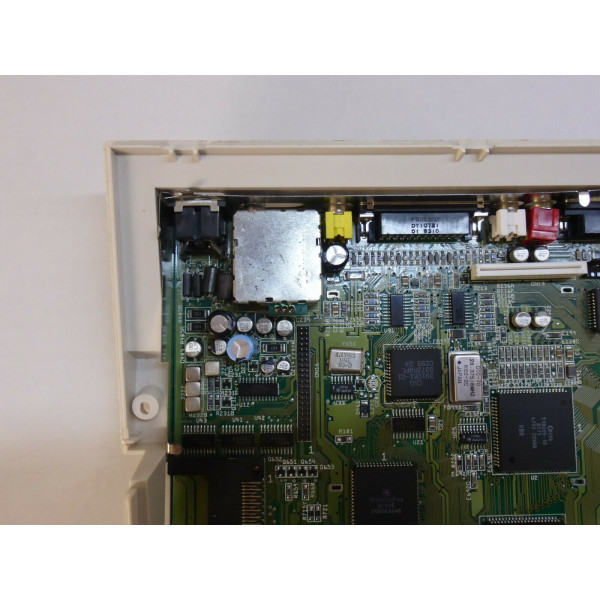

Step by step installation:

IN THE BOX

• S-Video mod PCB

Disclaimer:

If you are not familiar with soldering or you do not have proper tools, we can install the expansion for you. Please contact us to arrange installation.

If you are installing the device yourself, we will not take any responsibility for any damage to your hardware and the device will NOT be subject of any kind of warranty.
