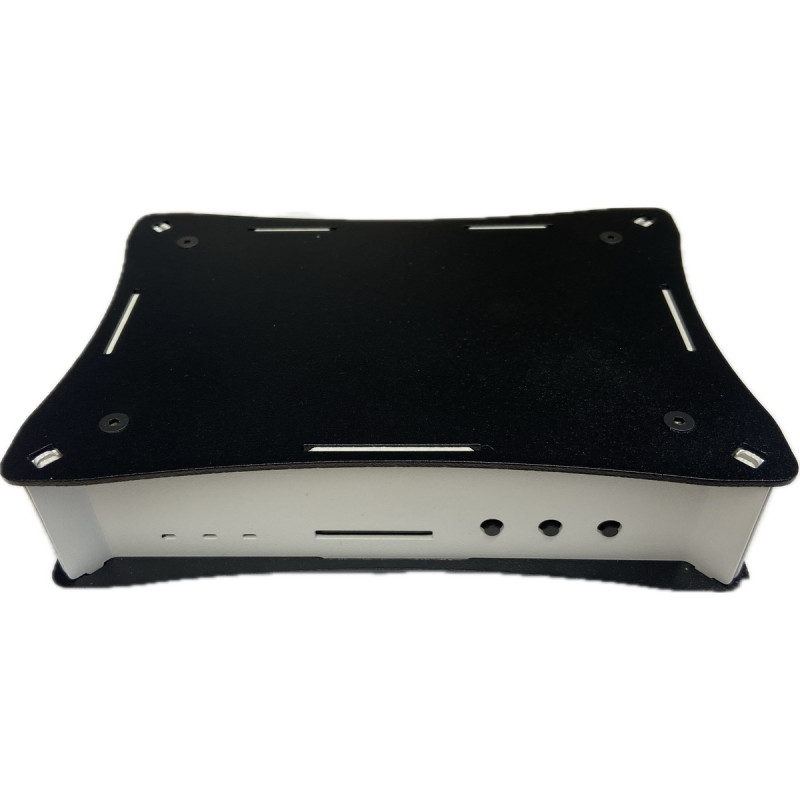

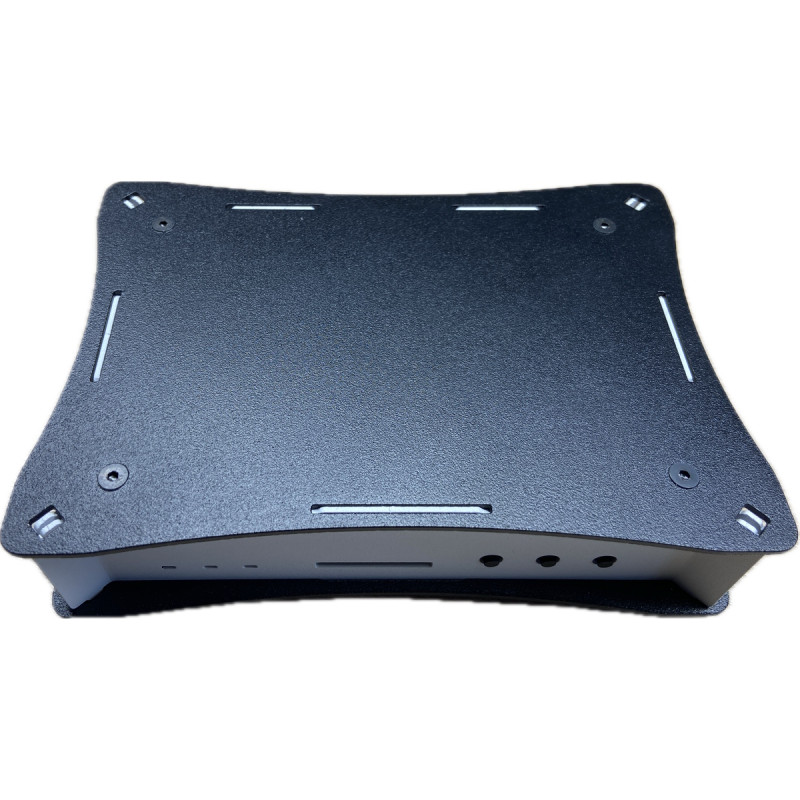

MIST 1.6

MIST 1.6 FPGA computer is allowing to emulate multiple retro machines.

Revision 1.6 changes (from 1.5):

• power supply socket changed to USB-C
• mainboard has been equipped headers
• MissTy add-on
• future add-on replacement possible.

Revision 1.5 changes:

• PCB redesigned (4 layers) and SDRAM signal routing reworked
• USB ports moved to right hand side; joystick ports moved to back
• 64MB 6ns of ISSI SDRAM
• power supply circuit reworked - dual power supply (micro USB 5V or any power supply providing 7-12V DC/AC)
• FPGA 1.2 VCCPL additional circuit
• Detachable (8-pin header) MIDI adapter allowing easy access to FPGA TX/RX lines and 3v3 power  supply - pinout description is present at PCB

 MIST is now supporting many machines:

• Atari ST/STE (also on SCART 15KHz)
• Amiga 500/600/1200 (AGA core beta)
• C64 (partially - still under development)
• Atari 8bit (96%)
• Collecovision
• Sinclair ZX81
• Atari 2600
• ZX Spectrum with AY, also with DIVMMC and ESXDOS
• SEGA GENESIS
• Apple
• MSX
• AMSTRAD CPC (beta)
• many more,..

Requirements: (For potential compatibility issues see the peripherals wiki page)

• USB keyboard
• micro USB phone charger for power supply
• SD card (1GB recommended)
• VGA display
• USB mouse
• set of PC speakers

Important Notes:

Device was tested with a lot of different models of SD cards and should work properly with all of them. Unfortunately, there is a lot of fake/bad flash media (SD cards/CF cards/USB keys...) on the market. We strongly recommend you to take care when selecting the SD card and also choose a good manufacturer. To ensure you the best experience with our products and to avoid issues with fake/bad SD cards, we have decided to offer you a selection of tested and certified working SD cards. You may get them here: 100% SAFE MEMORY CARD

Please, also consider purchasing MIST SCART RGB cable

The board didn't boot? Please read about Troubleshooting

You will find here all necessary files (most recent firmware/cores): https://github.com/mist-devel/mist-binaries

Also, here is a nice collection of ARCADE CORES and others: Gehstocks-Mist_FPGA-master

Check this link for FAQ
