DIAGNOROM

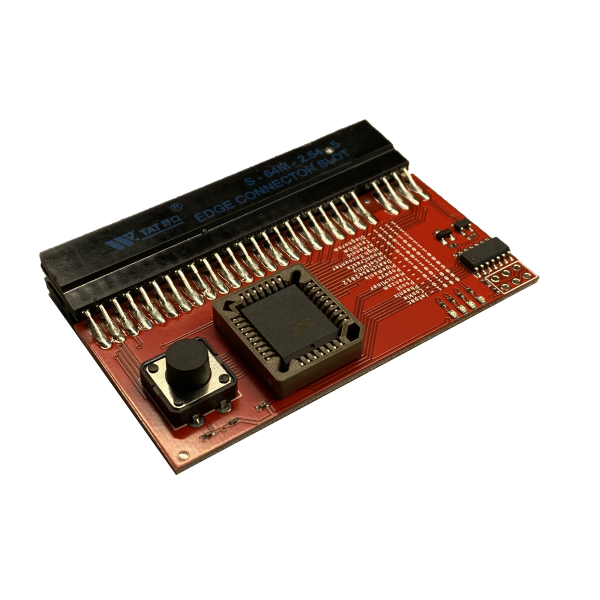

DIAGNOROM is a ROM switcher for Sinclair ZX Spectrum computers.

Features:

• one button AVR controlled ROM switching routine

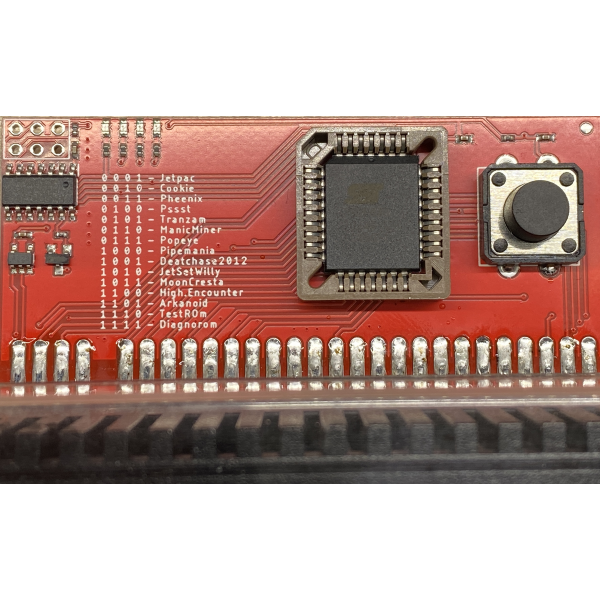

• 15 ROMs uploaded (refer to the list printed at PCB, look at the second photo) - some old school games and diagnostic ROMs are present
• high quality edge connector

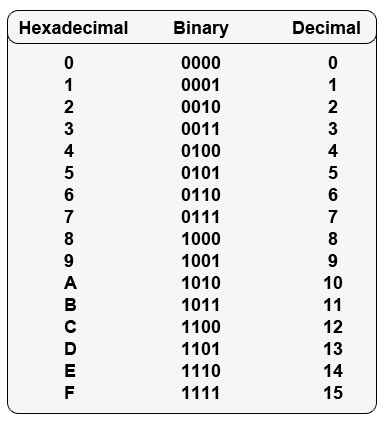

• 4 LEDs are indicating selected ROM number in binary format

• change the ROM by pressing button on the device
• last selected ROM number is stored between power cycles
• works with original ZX Spectrum machines only (16, 48, 128, 128 +2 [grey case])
• not compatible with computers produced by Amstrad
• plug and play
