IDE LeyLines

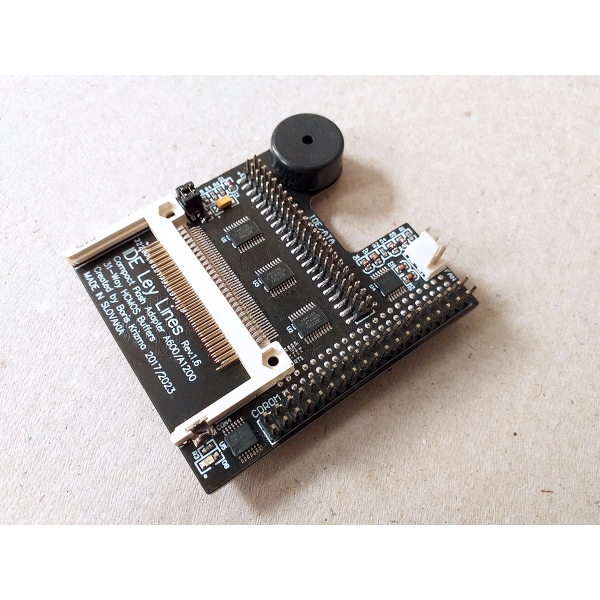

IDE LeyLines is dual buffered IDE port expander for Amiga 600 and Amiga 1200.

Features

• IDE LeyLines is a 31-Way HCMOS Buffers CF Adapter
• 2x CompactFlash Cards or SD-Card (with SD to CF adapter)
• secondary CF adapter can be removed which allows connecting another ATA device to the 2.5" connector.
• IDE LeyLines allows connecting up to 4 IDE/ATA devices - Compact Flash cards, SD Cards, Microdrive, hard disks. 3.5" CDROMs, ZIP drives (requires IDE-Fix'97 software)
• separate buffering for the IDE/ATA CF connector, this is especially important for the 2.5" connector and the 3.5" CDROM connector, shared data bus.
• hard disk sound emulation, can be turned it off
• one 5V connector for a fan

DISCLAIMERS

1. For the correct function of two Compact Flash Cards (or SD with CF Adapter), it is necessary that the card set as MASTER is to be slower than the one that is set to SLAVE. Otherwise, it will not be visible in the system, or the partition on one of the CF cards may be damaged! Since Compact Flash is not a 100% True IDE device, some CF cards may not work together. It's not a IDE LeyLines problem, but the very compatibility of CF Cards with each other.
2. Recommended Software for CDROM, ZIP ATAPI  http://aminet.net/package/driver/media/IDEfix97

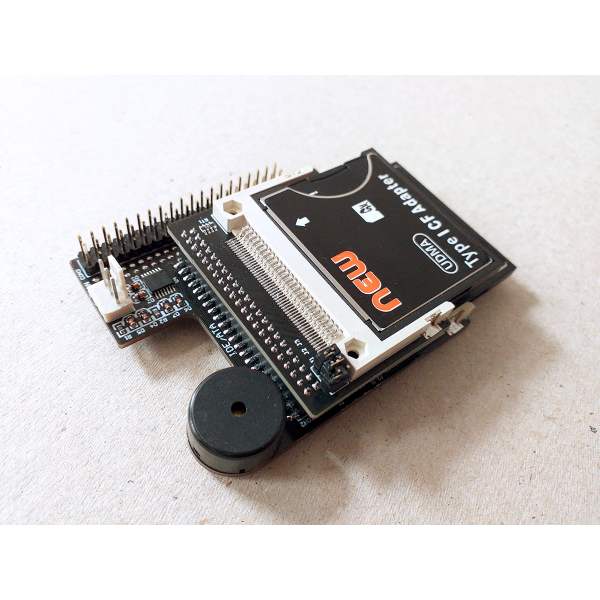

3. CF cards seen at pictures are not included.

IN THE BOX

• IDE LeyLines main PCB

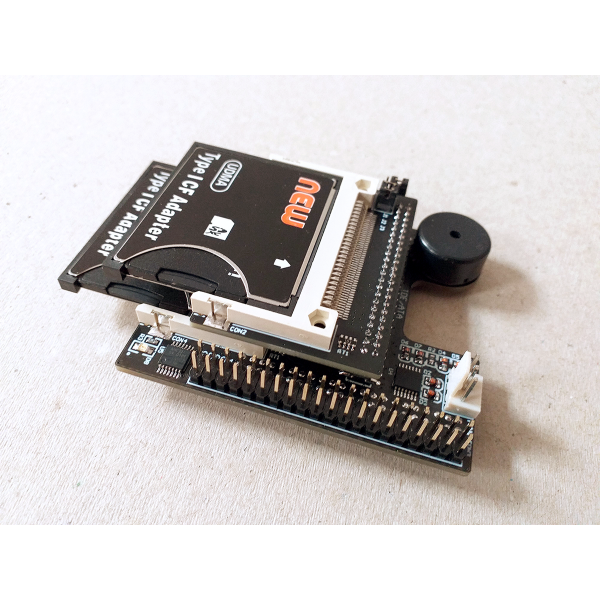

• IDE LeyLines second CF card PCB
