AKI USB keyboard interface

AKI - Atari Keyboard  Interface - USB version. Allows connection of USB keyboards to Atari 8-bit. It supports wireless keyboards as well.

 First such a device for Your Atari 8-bit worldwide!

IN THE BOX

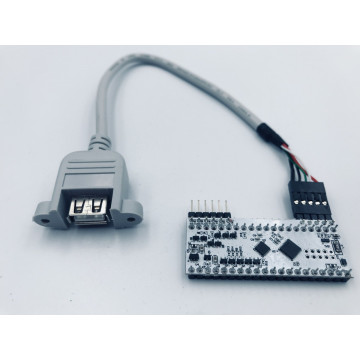

• AKI USB device
• USB socket cable

Disclaimer:

If you are not familiar with soldering or you do not have proper tools, we can install the expansion for you. Please contact us to arrange installation.

If you are installing the device yourself, we will not take any responsibility for any damage to your hardware and the device will NOT be subject of any kind of warranty.

 Step by step instructions

1. desolder/remove Pokey
2. insert AKI
3. insert Pokey back
4. make connection of 4 wires to PCB (START, SELECT,OPTION, RESET)
5. drill a hole in Atari case, fit USB socket and connect to AKI PCB (both black cables on the right as seen at pictures)
6. ready :-)
