VBXL (for XL computers)

VBXE project was started in 2005 by Tomasz Piórek (Electron/TQA), and first public announcement was made in March of 2006.  Since that time, VBXE project has been improved by Candle`o`Sin - Video DAC has been changed, microcontroller responsible for FPGA core management functions was swapped from PIC to ATMega48.  Recently, new live was pumped into project - another VideoDac change, few minor changes. Newest version - 2.1 - is 100% compatible with it`s ancestors, is made on automatic assembly lines and it is 100% ROHS and environment friendly.

 Device info:

• RGB output providing crisp clear picture using LCD TV or RGB monitor
• up to 1024 colors on screen from 21 bit palette
• graphics resolution up to 640x480i (640x240p) in 64 colours, 320x240p in 1024 colours, and 160x240p in 1024
• true 80 char mode for text display
• blitter with 7 modes of operations capable of zooming displayed data, transparency, collision detection and many other features
• full downward compatible with GTIA chip
• and many, many more

 IN THE BOX

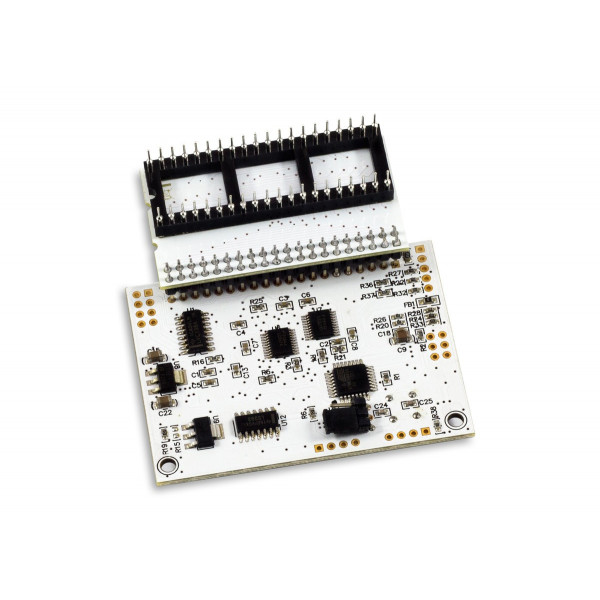

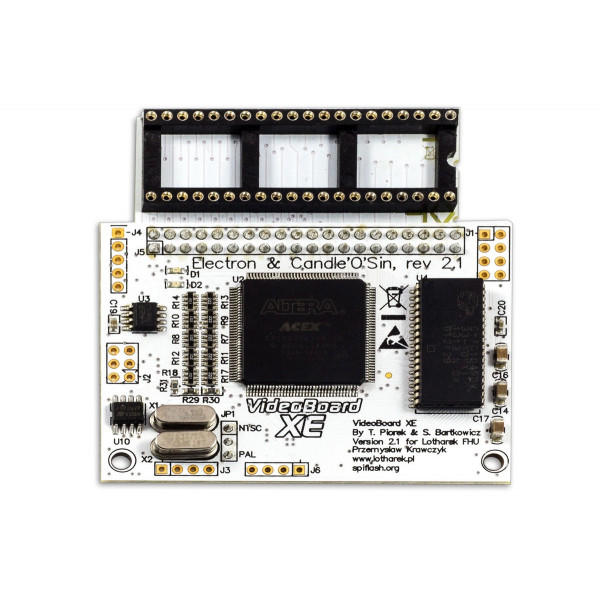

• main VBXE board PCB
• adapter for Atari XL

 Disclaimer:

If you are not familiar with soldering or you do not have proper tools, we can install the expansion for you. Please contact us to arrange installation.

If you are installing the device yourself, we will not take any responsibility for any damage to your hardware and the device will NOT be subject of any kind of warranty.

Full installation manual is available in the Downloads tab above.
