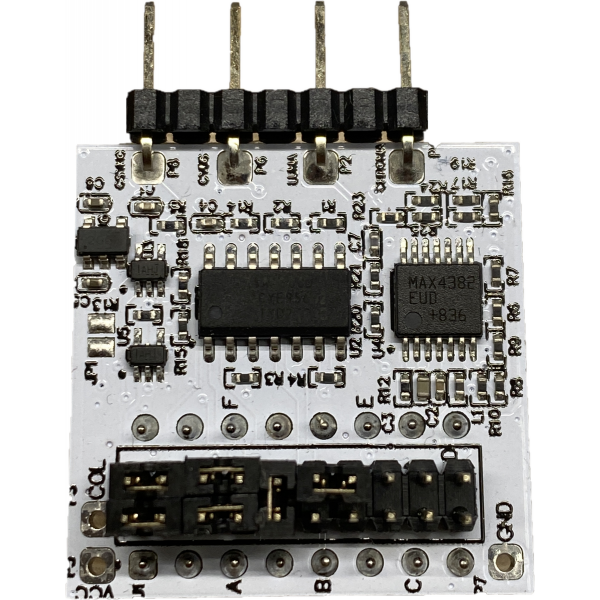

Spectre AV

SPECTRE AV - ultimate video mod for 8-bit Atari computers  and consoles. Designed by Candle'O'Sin, produced by Lotharek.

Compatible with:

• All Atari XL models: 600XL, 800XL, 1200XL
• All Atari XE models: 65XE, 130XE, 800XE
• Atari 400 / 800
• Atari 2600
• Atari 5200

INSTALLATION

1. Replace 4050 chip with Spectre AV PCB.
2. Set up jumpers according to your machine type:



3. Connect wire from GTIA pin 21 to COL signal on Spectre AV.
4. Connect output signals from Spectre AV to Atari video output.

Example diagram of connections to video output for XE machines (click for larger version):
