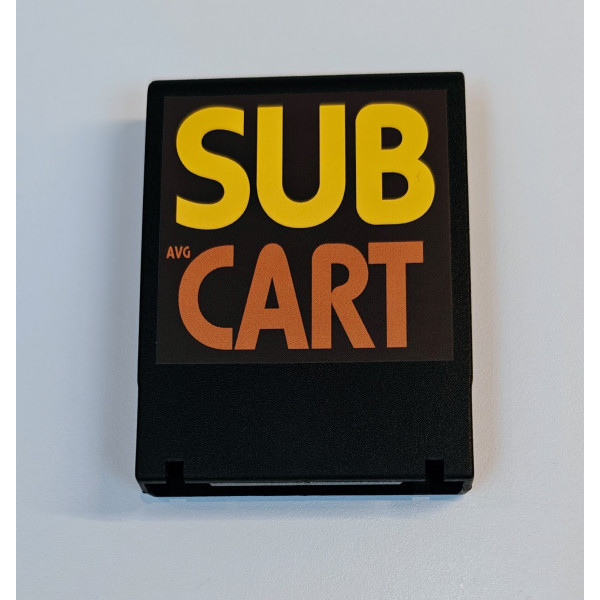

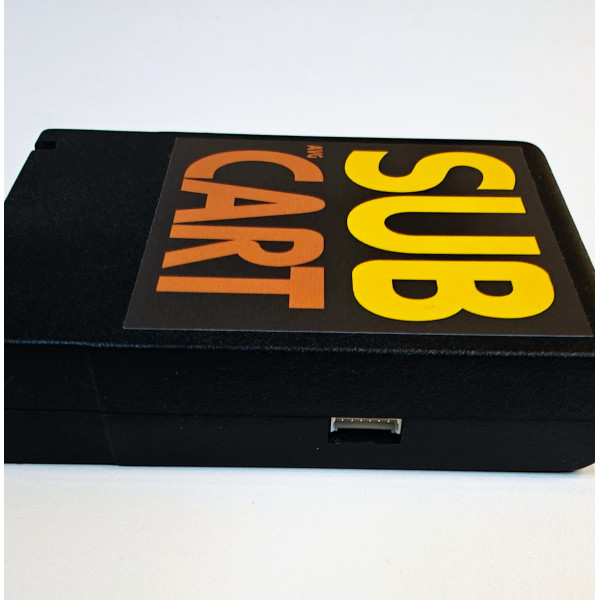

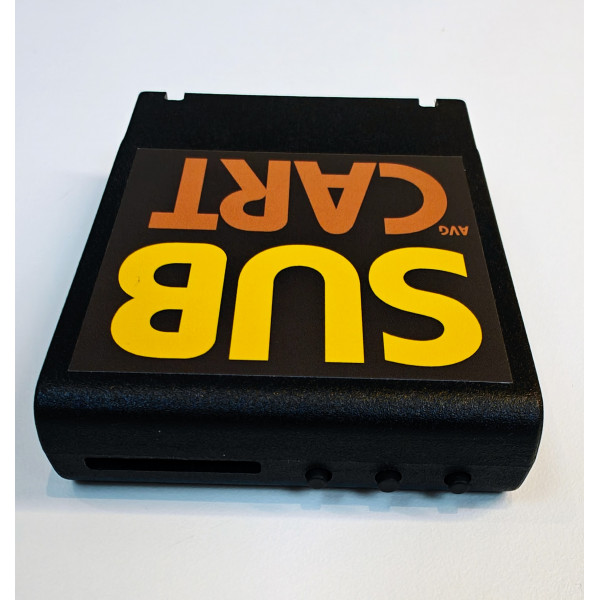

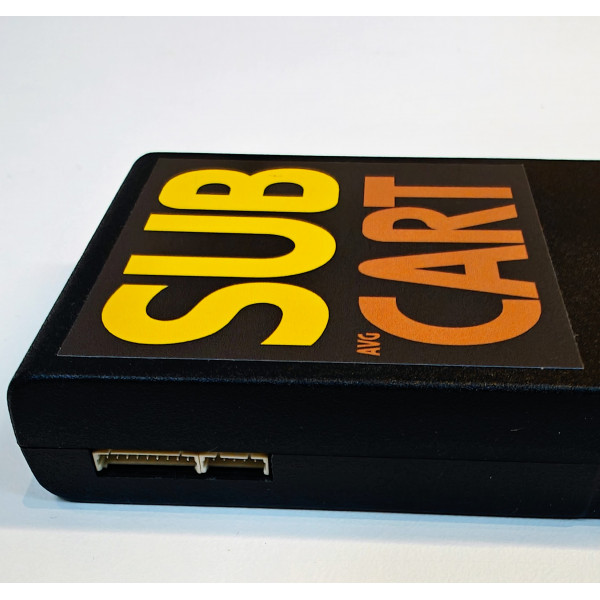

SUBCART

Enhanced version of AVGCART multicart for Atari XL/XE

• supports CAR (cartridge dump) files up to 1MB and most bankswitching types

• supports XEX (executable) files

• supports ATR (floppy image) files (read/write) - support is limited without an optional SIO cable or ECI / PBI cable due to Atari cartridge port constraints (e.g. SW that uses RAM under OS does not work)

• supports ATX (protected floppy image) files (read-only, SIO cable required)

• supports CAS (cassette) files (SIO cable required)

• supports AVF (video) files

• supports PDM (audio) files

• fast file search, file shortcuts, randomizer and tons of other features

• As it has more memory than AVGCART, it is allowing e.g. expanding Atari to 1088kB (in all scenarios, not only ATR, including 16kB stock Atari 600XL) or provide 4MB AXLON compatible mem expansion. The ECI / PBI cable is required.

• firmware is upgradeable via SD card (no additional hardware needed)

• SIDE2 emulation (compatible with U1MB and SpartaDOS X)

• ability to stack emulated cart with emulated SpartaDOS X cart, together with SIDE2 emulated HDD

• unlike some other products, most of the functionality is running inside the cart and not on the host machine's CPU which makes it faster and more versatile (it can do stuff in parallel with host machine without having to gain 6502 control and doesn't require soldering extra internal upgrades like Ultimate 1MB for some basic functionality like ATR emulation or memory expansion)

• built-in battery backed RTC with SpartaDOSX driver

• stereo POKEY/COVOX emulation with optional DAC cable. To use this functionality, PBI or ECI cable is also required.

• compatible with 600XL, 800XL/XE, 65XE, 130XE, XEGS (cartridge shell is too wide for 1200XL, bare PCB will fit, it is also too tall for 800, can be used with cartridge door opened and door switch triggered)

For more information, visit AVGCART official website and check online manual
