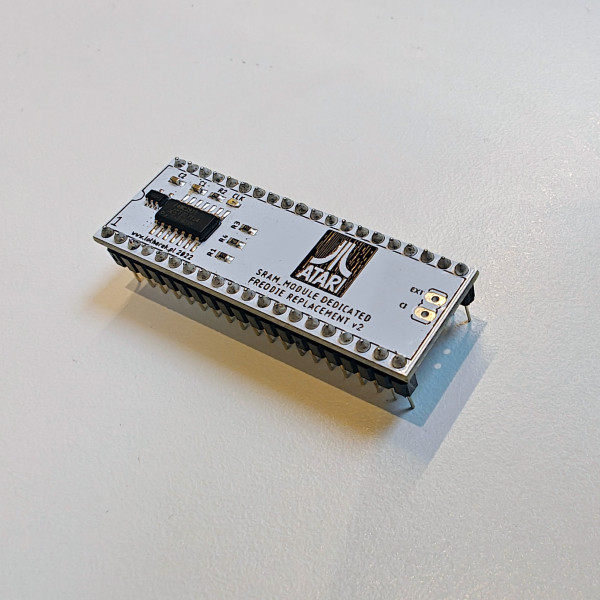

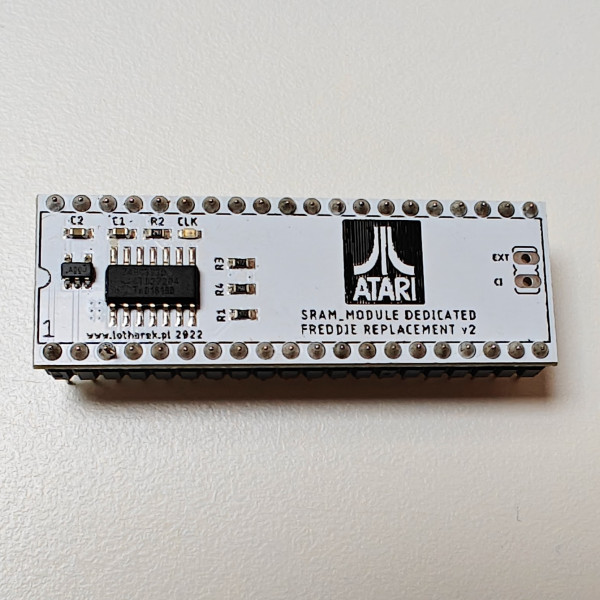

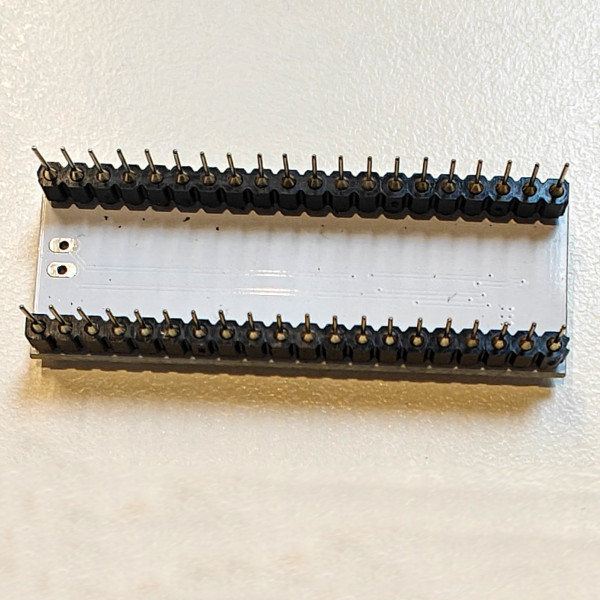

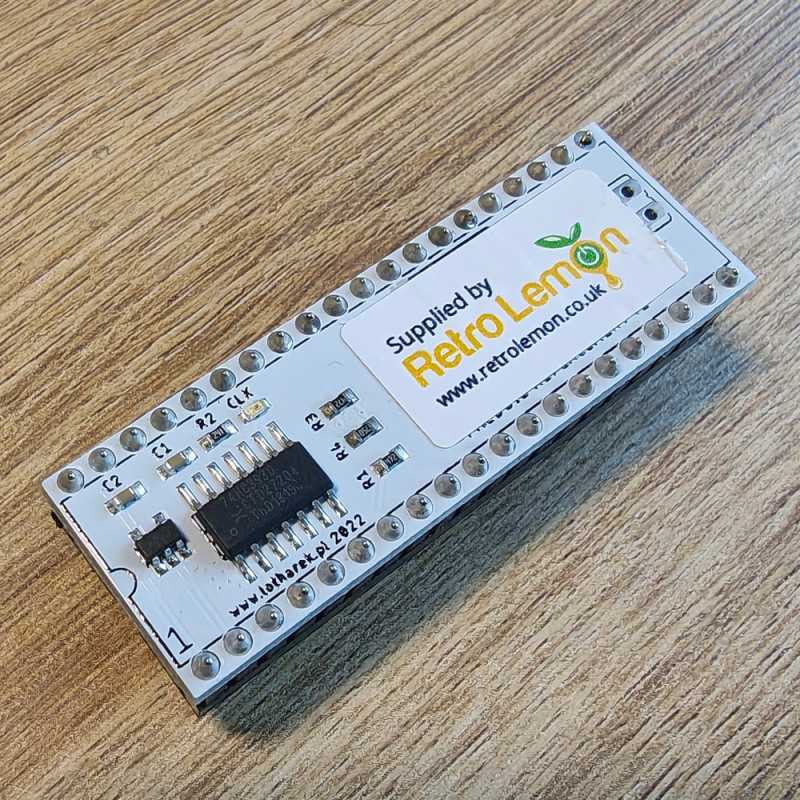

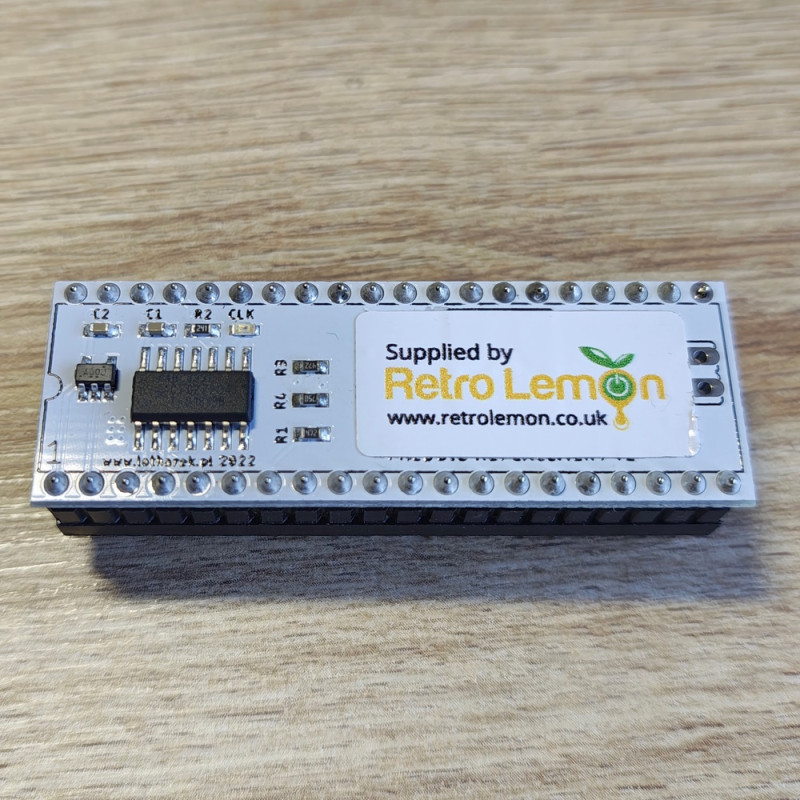

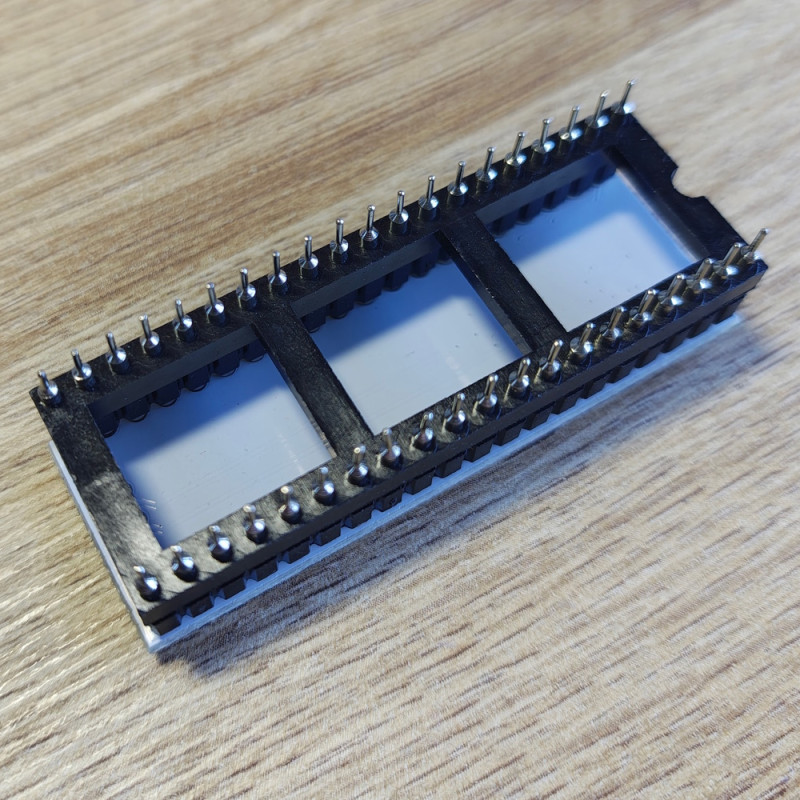

Freddie Module

Freddie chip replacement for Atari 8-bit - requires SRAM MODULE, it will not work without it. You may also consider standalone version available here.

FEATURES

• Creates OSC clock (3.5X MHz) for GTIA (CLK_IN /4)
• PAL/NTSC independent
• Generates inverted CLK_O for some motherboard revisions
• CAS_IN for SRAM MODULE connector

STEP BY STEP:

• swap faulty Freddie chip with this module
• connect two wires to SRAM (CI and EXT)
• after powering on, CLK_OK LED shall be constantly on - it means we have nice square clock signal

Disclaimer:

If you are not familiar with soldering or you do not have proper tools, we can install the expansion for you. Please contact us to arrange installation.

If you are installing the device yourself, we will not take any responsibility for any damage to your hardware and the device will NOT be subject of any kind of warranty.

Owners of VBXE upgrade do not need FREDDIE replacement.

Step by step instructions:

1. Fit SRAM replacement
2. Desolder Freddie
3. Fit VBXE
4. Connect VBXE J6 pin 1 (3.5MHZ) to OSC signal, available at hole in the PCB left after Fredie pin 37 or LS74 pin 3 or GTIA pin 28

5. Ready ;-)
